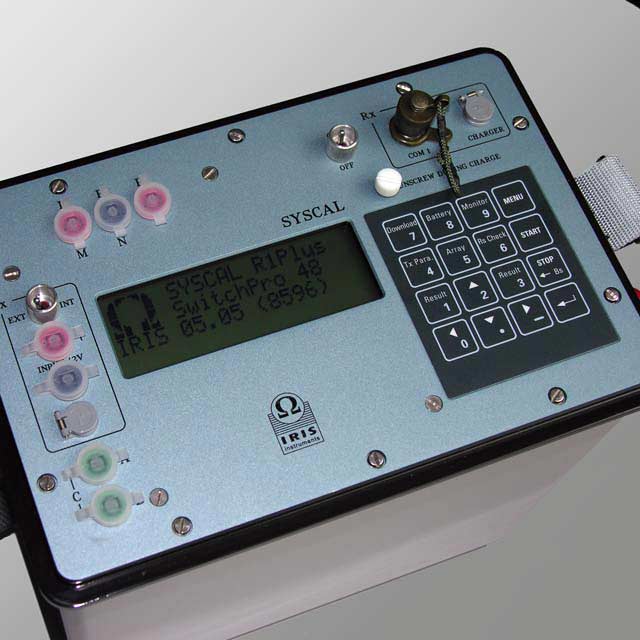

Syscal R1 Plus

Description The measurement is fully automatic, controlled by a microprocessor: automatic self-potential correction, automatic ranging, digital stacking for signal enhancement, error display in case of procedure troubles. The internal memory can store more than 800 measurements (3000 in multi-electrode mode) with full information on intensity, voltage, resistivity, IP Charge-ability, geometrical parameters and station number. A serial link permits transfer of the data to a microcomputer for plotting and interpretation of the data. It can be used for civil engineering, groundwater and environmental projects, to solve problems such as depth-to-bedrock determination, localization of weathered bedrock. Its power makes it adapted to detect fault in fractured bedrock aquifers and to explore groundwater aquifers (depth and thickness). Applications Water resources Locate conductive fault in fractured aquifer Assess water table characteristics Characterize salt water wedge extension in groundwater Environment Monitor pollution Detect leaks and monitor degradation in waste disposal Locate and image buried structures Natural hazard Detect and characterize cavities Assess landslide extension and volume Detect and locate clayey layers for geotechnical application Downloads Syscal R1 Plus Datasheet Syscal Checklist Principles of geophysical methods for groundwater investigations Master curves for schlumberger sounding interpretation Step-by-step operation of SYSCAL resistivity meters
