Aluminium Composite Panels (ACP Sheets & Boards)

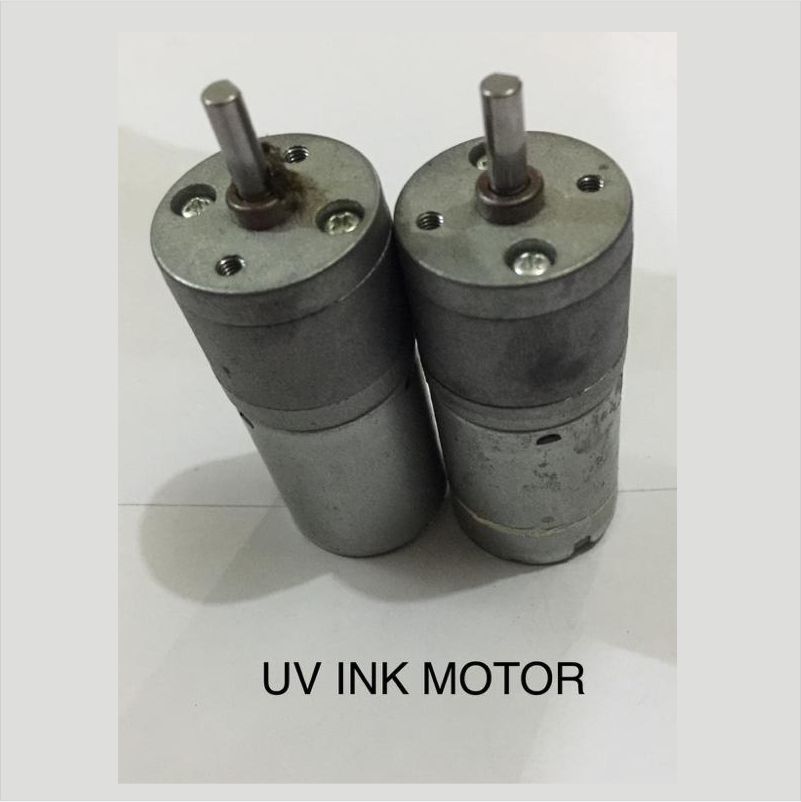

UV INK MOTOR

$ 19.77

New!
Overview & Purpose In a UV flatbed printer (or other UV-curable inkjet systems), the term “UV motor” generally refers to the motors that drive the motion mechanics — not the UV lamp itself, but the motors that control movement of the carriage (print head), bed, or other axes. These motors are crucial for enabling precise, stable, and high-speed motion during the printing process. The motors are responsible for: Moving the print carriage in X‑axis (left-right) Moving the substrate or table in the Y‑axis (front-back) Adjusting the Z‑axis (height) for different substrate thicknesses In advanced systems, providing synchronized, high-precision acceleration via linear or magnetic-levitation (maglev) designs Key Types of Motors Used in UV Printers Servo Motors Widely used in UV printers to drive axes. rainbowuv.com 2zlqink.com 2 Provide closed-loop control (position feedback), which ensures accurate and repeatable movement. High torque and fast response help maintain print precision, especially when the carriage accelerates or decelerates. Often coupled with lead screws or rack-and-pinion mechanisms for stable, backlash-free axis motion. Linear (Maglev) Motors Some modern high-end UV flatbeds use linear maglev motors, which eliminate belts/gears for motion. Advantages include extremely high precision, very fast speed, and minimal mechanical wear because there’s no physical contact between moving parts in the drive system. These motors are ideal for large-format or very high-speed UV printers that demand tight motion control and long-term reliability. Technical Features & Specifications (Important to Consider) When specifying or evaluating a UV printer motor, you will typically look at: Torque / Power Rating: Higher torque is better for moving heavy carriages or large print heads quickly. Feedback Mechanism: Whether the motor uses encoders for positional feedback (commonly in servo motors). Control Method: Servo motors will use servo drives; linear motors often have dedicated controllers. Speed & Acceleration: The motor must support the required acceleration rates without losing steps or overshooting. Precision / Resolution: How finely and accurately the motor can position the carriage — important for high-resolution printing. Durability: For industrial UV printers, the motor should support millions of cycles reliably. Synchronization: In some machines, dual motors may be used on one axis for synchronized movement to avoid skew or racking. Benefits of High-Quality UV Motors Print Precision & Stability: Accurate motor control ensures consistent positioning of the print head, which affects print quality. Speed: High-performance motors reduce the time per print pass by allowing faster acceleration and deceleration. Reliability: Closed-loop systems (like servo motors) reduce the risk of missed steps or positional errors. Longer Lifespan: Especially with linear / maglev motors, reduced mechanical wear extends maintenance intervals. Reduced Maintenance: Fewer mechanical parts (belts, pulleys) means lower maintenance and downtime. Risks / Challenges / Considerations Cost: High-quality servo or linear motors are more expensive than simple stepper motors. Complexity: Advanced motor systems (e.g., maglev) require more sophisticated control and safety systems. Calibration: Precision systems need proper calibration (encoder, guides) to maintain accuracy over time. Power Requirements: High-power motors may need stronger power supplies and drives. Environmental Factors: Motors need to be protected from dust, vibration, or other environmental stresses in the print environment. Examples & Use Cases The Artis 3060U UV printer uses a servo‑motor driven printing table for high-precision movement. The iMaxcan UV 1611 printer uses a linear maglev motor for very high positioning accuracy (0.1 µm) and extremely fast acceleration. In typical UV flatbeds, servo motors are used on the X, Y, and Z axes to ensure coordinated, stable motion.
Category:

Aluminium composite panels (ACP) are lightweight, rigid sheets made from two aluminium layers bonded to a polyethylene or mineral-filled core. Also known as aluminium composite board or aluminium composite material, these panels are widely used for signage, displays, cladding, and architectural applications due to their strength, durability, and smooth surface finish.

diamondcutrugs supplies high-quality aluminium composite panels in multiple sizes, thicknesses, and finishes. Easy to cut, route, and fabricate, ACP sheets are ideal for professional sign makers and commercial projects requiring a long-lasting and visually clean material.

Aluminium Composite Panels: Premium ACM Solutions for Australian Projects

If you’ve been in the construction industry for a while, you have likely hit that wall where a client wants something that photographs well, does not cost a lot, and will not warp in Australia after a summer or two.

Sheet aluminium costs a fortune and bends with heat. Acrylic is prone to scratching. Dibond works, but the colour range can be quite limiting.

This is where aluminium composite panels or aluminium composite boards really shine.

  • The material stays flat without fussing.
  • They cut clean on a CNC or guillotine.
  • They survive Melbourne weather without turning into a warped mess.

.. which is more than you can say for half the materials out there.

But not every ACP is built the same. If you spec the wrong one, you’re looking at failed building inspections, panels that fade within 18 months, or worse, having to redo the entire job.

diamondcutrugs is a family-owned business, backed by more than 50 years of experience in the industry. If you’re planning your next signage or construction project and want panels you don’t have to second-guess, we have got you covered.

What Is Aluminium Composite Material?

ACM is essentially a three-layer sandwich that’s been heat-bonded under pressure. Two aluminium skins on the outside (usually 0.21mm on each side) with a core material locked in between. That core is made with polyethylene if it’s a standard panel.

The aluminium skins do the heavy lifting structurally.

They let you route, drill, fold, even bend the panel without it cracking.

The core keeps everything rigid while dropping the weight to about a third of what solid aluminium would be.

This really matters when you’re hauling sheets up scaffolding or trying to fit eight panels in a ute without the suspension bottoming out.

What sets ACP sheets apart from just gluing materials together is how it’s manufactured.

The bonding happens under heat and pressure, so you’re not dealing with adhesive failure down the track. This reliability is why it is one of the most sought-after materials today. You will see it in the following use cases:

  • External building cladding and architectural facades
  • Monument signs, pylons, the big stuff you see from the road
  • Shopfronts and retail fascias
  • Feature walls and internal partitions
  • Large format print substrates, when you need something flat and stable

Surface finish varies depending on what’s been ordered. It could be polyester powder coat, PVDF, brushed, or even mirror finish aluminium.

Core type affects fire compliance and weight. Skin thickness affects how cleanly it machines. All of it matters depending on what you’re building.

As one of the more established aluminium composite panel suppliers Australia trusts, diamondcutrugs focuses on:

  • consistent, high-quality ACP sheets
  • reliable stock availability
  • fast delivery across Victoria and nationwide
  • and custom cut aluminium panels

Instead of trimming sheets onsite or wasting half a day resizing material, panels arrive for you, ready to install.

Types of Aluminium Composite Panels

Different jobs need different specs. Using the right type makes a big difference. This is where people commonly make mistakes.

With the wrong type of ACM, a job could get knocked back because of choosing the wrong type. You need to match the panel type to what you’re building:

Polyethylene Core Panels (PE)

This is what most sign shops keep stacked in the corner because it handles the bulk of everyday work.

Polyethylene core keeps the weight down, seamless on machines, and comes in enough stock colours that you can find something close to what you want.

Where PE is used the most:
  • Shopfront signage panels and retail fascias
  • Monument signs sitting at ground level
  • Internal wayfinding and directional signage
  • Temporary structures, hoarding, event installations

This is cheaper than FR, easier to work with, and available basically everywhere. The trade-off is fire performance. You can’t put it on a high-rise and can’t use it where codes require non-combustible materials. But it gets the job done for most.

Coloured and Specialty Finishes

Beyond your whites, silvers, blacks, there are brushed looks, mirror finishes, metallics, if you have the specific Pantone or RAL requirements.

Some finishes are shelf stock, others you are ordering in and waiting a couple of weeks for.

  • Brushed hides scratches way better than gloss (good for high-traffic spots)
  • Mirror looks polished
  • Matte finishes photograph cleanly. This is suitable for corporate work.

Speak with one of Australia’s trusted aluminium composite panel suppliers today.

Request a quote, or place your order with diamondcutrugs.

Durable Aluminium Composite Panels for Signage, Cladding, and More

Choosing materials that are strong yet easy to shape is often a challenge, especially when time is tight and design demands are high. Traditional options can be heavy, hard to work with, and vulnerable to weather, limiting your creative freedom and slowing down your progress.

Aluminium composite boards combine the strength of aluminium with a lightweight core to produce durable yet flexible panels. These strong, lightweight, and versatile boards resist weather and are easy to work with, making them ideal for signs, building facades, and interior designs. For aluminium composite boards that work for you, contact diamondcutrugs Signage Supplies today!
